Casement Windows
Open to Performance. Framed in Strength.
Casement Windows
Perfect for framing amazing views, picture windows are fixed windows that do not open.

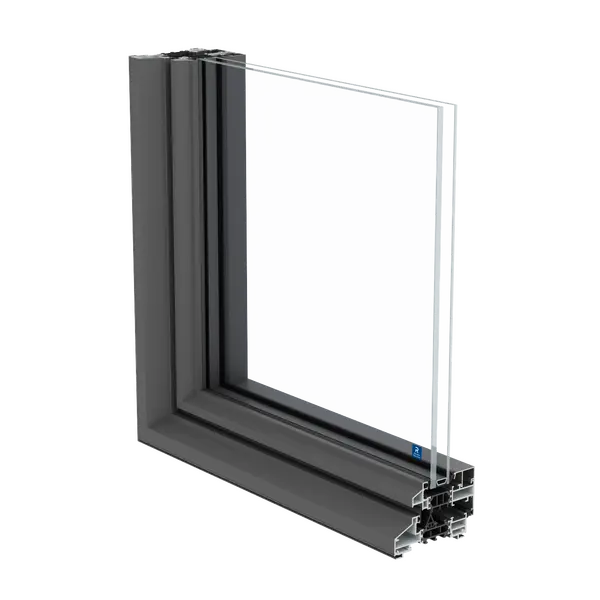

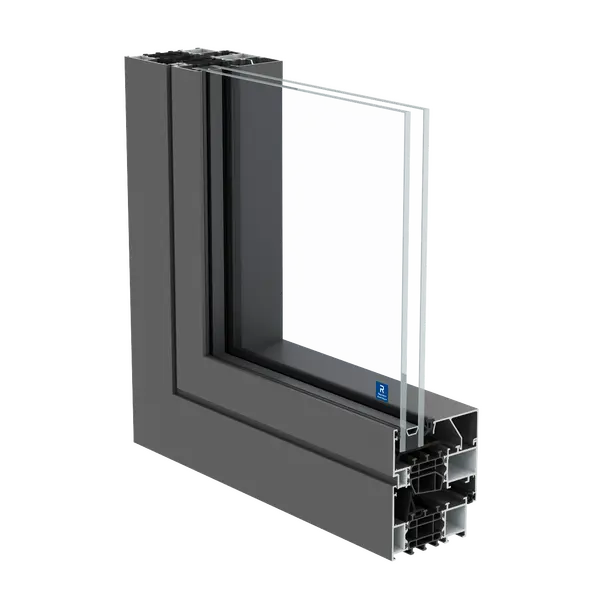

Masterwall’s Aluminum Casement Windows combine modern aesthetics with high performance. Designed with durable, corrosion-resistant aluminum profiles, they offer slim sightlines, maximum natural light, and long-lasting strength.
Engineered for energy efficiency and weather resistance, these windows feature high-performance glazing options and advanced sealing systems for enhanced thermal comfort. Smooth operation and secure multi-point locking provide both ease of use and safety.
Available in custom sizes, finishes, and configurations, Masterwall Casement Windows are ideal for residential and commercial projects seeking durability, efficiency, and refined design.
Versatile window solution to match any project needs
Well-balanced price-performance-features mix
Reliable windows that
last a lifetime
TECHNICAL DETAILS
Thermal Insulation
High
- Uf = 1.8 W/m²K
- Uw = 1.3 W/m²K
Air-Water-Wind
High
- 4 / E900 / C5
Acoustics
Medium
- Rw(C;Ctr) = 42(-2; -4) dB
System Dimensions
- Min. Frame-Vent Width 89 mm
- Depth Frame 68 mm
System limitation
- Max. Height Vent – 2800 mm
- Max. Weight Vent – 170 kg
Thermal Insulation
High
- Uw double = 0.24 Btu/hr.ft².°F
- Uw triple = 0.18 Btu/hr.ft².°F
Air-Water Tightness
- Air = 0.04 cfm/ft³
- Water = 12 psf
AAMA Rating
- Class AW
Acoustics
- STC = 43 dB
- OITC = 34 dB
Height Vent
- Min 23 5/8 inch
- Max 110 1/4 inch
Thermal Insulation
Passive
- Uf = 1.9 W/m²K
- Uw = 0.96 W/m²K
Air-Water-Wind
High
- 4 / 9A / C4
Acoustics
System Dimensions
- Min. Frame-Vent Width 67 mm
- Depth Frame 99 mm
System Limitation
- Max. Height Vent – 2800 mm
- Max. Weight Vent – 170 kg
Thermal Insulation
Super High
- Uw double = 0.23 Btu/hr.ft².°F
- Uw triple = 0.16 Btu/hr.ft².°F
Air-Water Tightness
- Air = 0.01 cfm/ft³
- Water = 12 psf
AAMA Rating
Acoustics
- STC = 44 dB
- OITC = 35 dB
Height Vent
- Min 23 5/8 inch
- Max 110 1/4 inch
Thermal Insulation
- Uw = 1.1 W/m²K
Air-Water-Wind
Extreme
- 4 / E1200 / C5
Acoustics
System Dimensions
- Depth Frame 78 mm
System limitation
- Max. Height Vent – 1500 mm
- Max. Weight Vent – 50 kg
Thermal Insulation
Passive
- Uf = 1.0 W/m²K
- Uw = 0.88 W/m²K
Air-Water-Wind
Extreme
- 4 / E1200 / C5
Acoustics
System Dimensions
- Min. Frame-Vent Width 97 mm
- Depth Frame 77 mm
System limitation
- Max. Height Vent – 2800 mm
- Max. Weight Vent – 300 kg
Thermal Insulation
Super High
- Uw double = 0.23 Btu/hr.ft².°F
- Uw triple = 0.16 Btu/hr.ft².°F
Air-Water Tightness
- Air = 0.01 cfm/ft³
- Water = 15 psf
AAMA Rating
Acoustics
- STC = 50 dB
- OITC = 44 dB
Height Vent
- Min 23 5/8 inch
- Max 110 1/4 inch

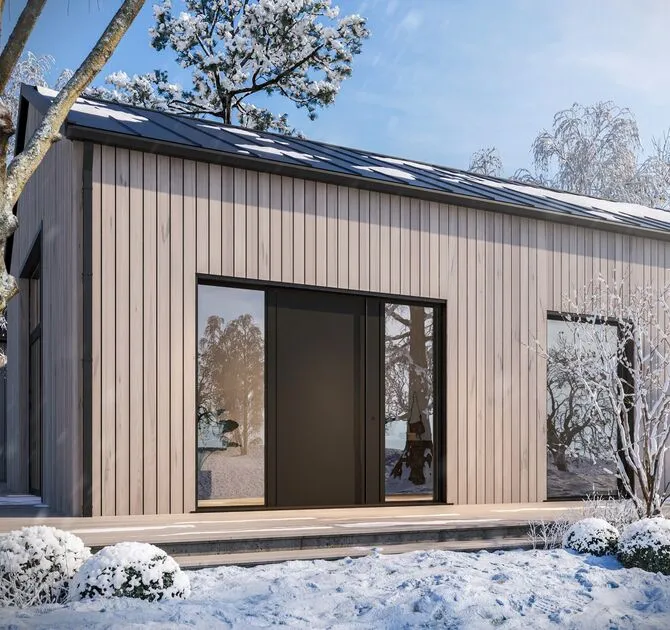

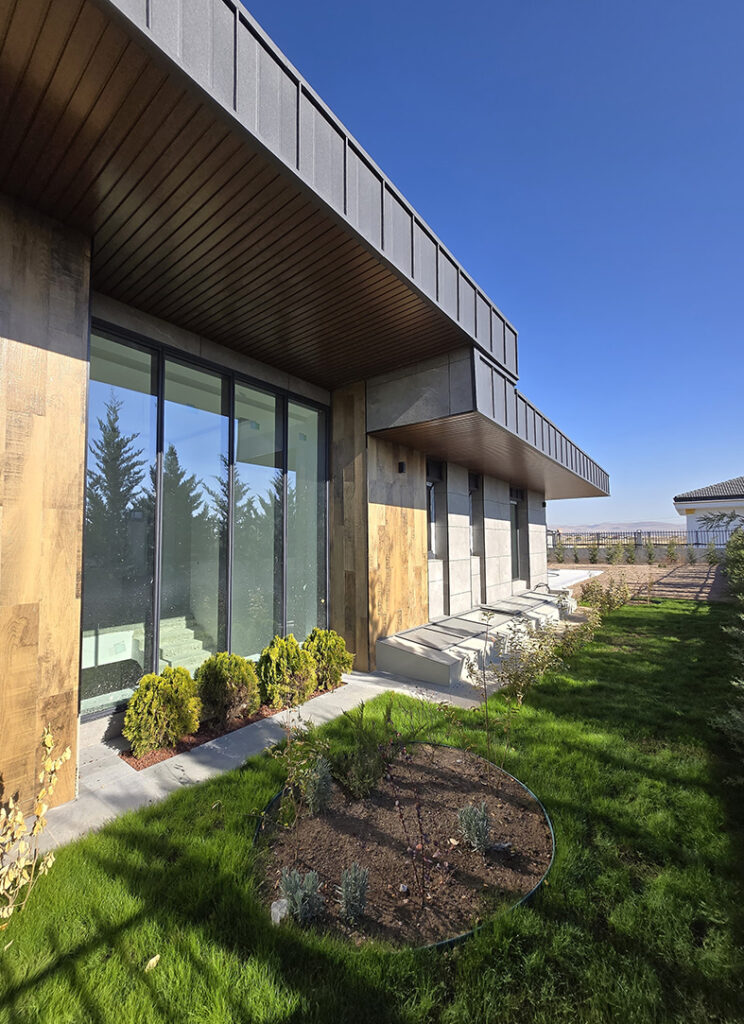

INSPIRATION FOR YOUR PICTURED WINDOW PROJECT
Find everything you need to gain inspiration and ideas for your project, all in one place!
Masterline 8
